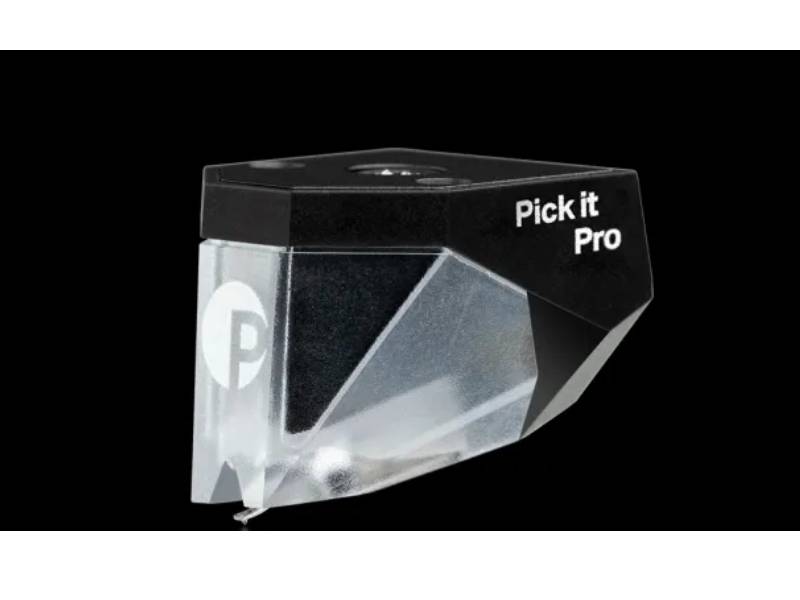

Project Audio Pick it Pro Audiophile MM Cartridge - PROJECTPRO
Authorized Dealer
Price Match Guarantee
Price Match Guarantee
Bianco's Supercenter offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
| Our Price |
$159.99 CAD |
Literature
Intensive research, development and listening tests have been necessary to gain the the desired sound from the new Pick it PRO.
THE DIFFERENCE IN SOUND
Cartridges are electromechanical transducers, where mechanical energy is transformed into an electrical signal. The real difference in sound happens here. The colour and life of the music come from the cartridge.
You cannot judge the cartridge by looking at just one specific part. Experience and the art of fine-tuning make a cartridge unique and special. The perfect combination of components is the key to achieve the great charismatic sound of the Pick it PRO.
| Specifications | |
|---|---|
| Cartriddge weight: | 7,2 g |
| Tracking angle: | 20° |
| Recommended load resistance: | 47kOhm |
| Internal inductance: | 450mH |
| Recommended load capacitance: | 150-300pF |
| Internal impedance, DC resistance: | 750 Ohm |
| Tracking force, recommended: | 2,0 g (mN) |
| Tracking force, range: | 1,8 - 2,2 g (mN) |
| Stylus tip radius: | r/R 8/18 μm |
| Stylus type: | Elliptical |
| Frequency response: | 20 - 20 000 Hz +/- 2dB |
| Tracking ability at 315Hz: | 70 μm |
| Channel separation at 1 kHz: | 22 dB |
| Output voltage at 1 kHz: | 4 mV |
| Cartridge principle: | MM (Moving-Magnet) |
